Take control of the fall ────
An evolved form of Ossia Jigger
to give to the orthodox school.

OCEA JIGGER F CUSTOM
1000HG/1001HG
1500HG/1501HG
2000NRHG/2001NRHG
3000HG

That Ossia Jigger is finally equipped
with a fall lever and appears as
"F Custom". The innovative shape
of the fall lever can be operated instantly
with a single thumb. Not only the
fall speed but also the underwater
posture of the jig can be freely
controlled to make the invitation
in the fall even more reliable. In addition,
the lightweight handle knob, which
is easy to grip and put in force,
easily supports high loads such
as fishing in the deep sea. It reduces
the burden on the angler. Of course,
the technology that Jigger is proud of,
such as smooth and powerful winding
by Infinity Drive and micro module gear,
high rigidity and durability, and smooth drag
performance, continues as it is. Nos.
1000 to 1500 are useful for jigging
red sea bream, hairtail, root fish, and
mid-deep sea, and numbers 2000 to 3000
are useful for games against large
fish such as amberjack and tuna.

Technical characteristics

Lineup

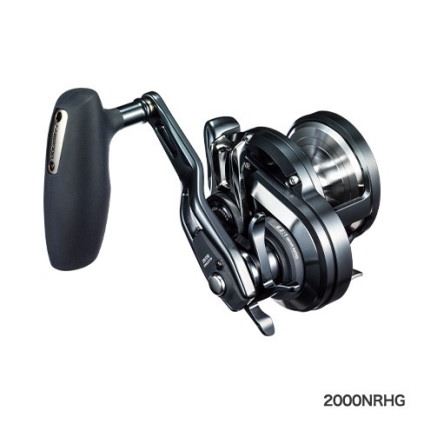

2000 NRHG	1000HG	1001HG	1500HG


3000HG

New era fall control
In order to realize a more strategic fall, the Ossia Jigger F Custom has a dent and is equipped
with a fall lever that further enhances operability.
The new shape derived by thorough actual fishing controls
from bold operation to delicate fine adjustment with one thumb.

Produce a free fall strategy with a lever designed exclusively for jigging.
The Ossia Jigger F Custom fall lever is designed exclusively for jigging.
It has a structure with characteristic dents on the top and sides of the lever.
Therefore, it is possible to easily operate the fall lever with the thumb
of the palming hand or the thumb of the hand holding the handle.
By controlling the fall speed instantly while jigging,
you can realize a more detailed strategy. Enjoy the freedom of production,
from the jerk from the untensioned speed fall to the braking bite.

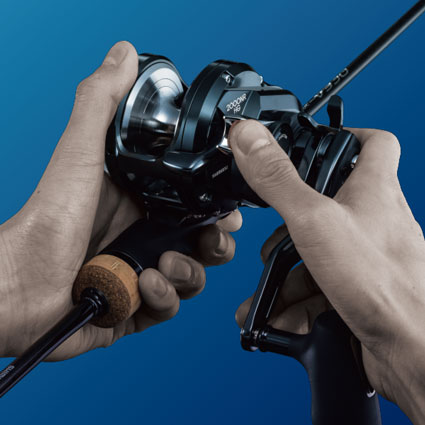

At the time of fall, you can also operate with the thumb of your palmed hand.	You can operate the recessed part with your thumb while holding the handle.

Fall lever usage example

1. Strongly jerk and fall	2. Make the fall lever work a little (produce the interval between eating)	3. Release the tension of the lever → Slide action again

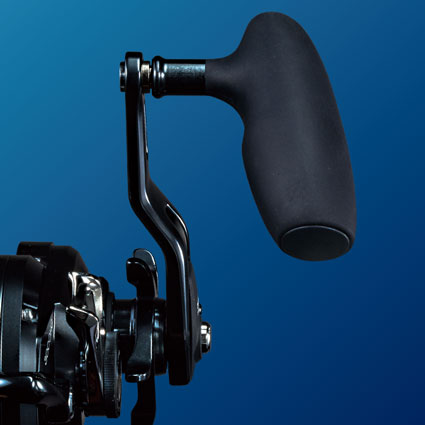

Developed assuming a high load, a new shape lightweight T-shaped handle knob.
	New shape handle knob Just size that is easy to grip and put effort into! All models from 1000 to 3000 are equipped with a newly developed handle knob. The "middle" size setting, which is neither too large nor too small, can handle slightly higher loads such as in the mid-deep sea. Lightweight and easy to put in force, it can be widely used for jigging in the near sea. Cold forged long crank handle High rigidity realizes powerful winding. The handle is equipped with a highly rigid and strong cold forged long crank handle as standard equipment. The handle body, which is hard and sturdy, enables direct winding without power loss due to the synergistic effect with the HAGANE body.

Winding performance with different dimensions

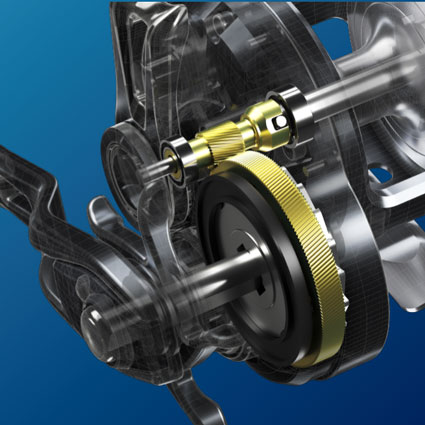

	INFINITY DRIVE Both gear strength and reduction of rotational resistance The key to achieving more efficient winding is the grease bearing that supports the pinion gear on the spool side. The Infinity Drive does not support this bearing, which has a large rotational resistance, but adopts a structure in which the pinion gear is supported from the inside by the spool shaft. Furthermore, by optimizing the support distance and wall thickness of the pinion gear, light rotation performance is achieved without reducing the gear strength. At the same time as having high support rigidity, we succeeded in reducing the rotational resistance of the gear drive unit.
	11 OCEA JIGGER	OCEA JIGGER F CUSTOM

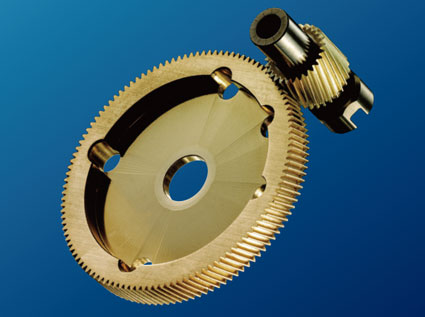

MICROMODULE GEAR Achieves powerful and smooth power transmission Shimano's original gear system that realizes smooth power transmission by closely engaging a large number of fine teeth that are as small as possible. By increasing the number of teeth that engage, both a smooth feeling and strength are achieved. In combination with the elaborate and highly rigid HAGANE body, its performance is maximized.	HAGANE BODY Metal armor smashed up by cold forging The HAGANE body of the Ossia Jigger F Custom is a metal armor that has been struck hard by cold forging. High rigidity protects the internal structure of the reel and minimizes deflection to improve gear meshing accuracy. It converts the power of the angler into hoisting power without letting it escape.

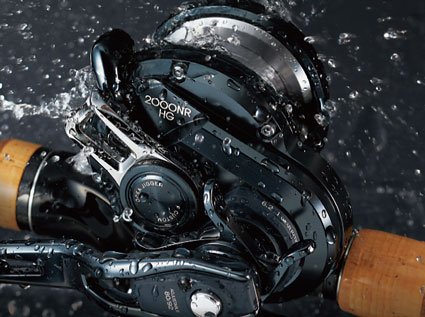

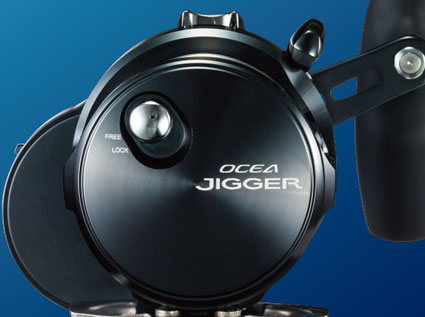

S compact body Compact design that can be firmly grasped The body on the palming side is designed to be more compact in diameter than the handle side. On top of that, the contact surface with the palm and fingers has been expanded to realize a hold feeling that can be firmly grasped. Since it fits firmly in the palm, it is easy to hold, improving operability and reducing angler fatigue.	X protect Impregnable waterproof system Shimano's proud waterproof system, X Protect. By using a waterproof wall and special water-repellent grease together, water intrusion into the drive gear shaft spool side bearing is firmly guarded. A waterproof wall is also provided inside the spool to reduce the arrival of seawater on the spool shaft bearing and improve the corrosion resistance of the bearing. It has further evolved into a highly durable offshore specification.

Feature

Fall function	Durability	DRAG	SPOOL

Fall lever A new era of fall control. In order to realize a more strategic fall, the Ossia Jigger F Custom has a dent and is equipped with a fall lever that further enhances operability. The new shape derived by thorough actual fishing controls from bold operation to delicate fine adjustment with one thumb.	X PROTECT Impregnable waterproof system Shimano's proud waterproof system, X Protect. By using a waterproof wall and special water-repellent grease together, water intrusion into the drive gear shaft spool side bearing is firmly guarded. A waterproof wall is also provided inside the spool to reduce the arrival of seawater on the spool shaft bearing and improve the corrosion resistance of the bearing. It has further evolved into a highly durable offshore specification.	EXCITING DRAG SOUND ■ Carbon cloth washer ■ New shape star drag	■ Spool lock ■ Spool replacement ● Main applicable fish species # 1000-1500 Hairtail, root fish, deep-sea fish # 2000-3000 Large fish, amberjack, yellowfin tuna

Overwhelming winding

INFINITY DRIVE Both gear strength and reduction of rotational resistance The key to achieving more efficient winding is the grease bearing that supports the pinion gear on the spool side. The Infinity Drive does not support this bearing, which has a large rotational resistance, but adopts a structure in which the pinion gear is supported from the inside by the spool shaft. Furthermore, by optimizing the support distance and wall thickness of the pinion gear, light rotation performance is achieved without reducing the gear strength. At the same time as having high support rigidity, we succeeded in reducing the rotational resistance of the gear drive unit.	MICROMODULE GEAR Achieves powerful and smooth power transmission Shimano's original gear system that realizes smooth power transmission by closely engaging a large number of fine teeth that are as small as possible. By increasing the number of teeth that engage, it has both a smooth feel and strength. In combination with the elaborate and highly rigid HAGANE body, its performance is maximized.

Rigidity

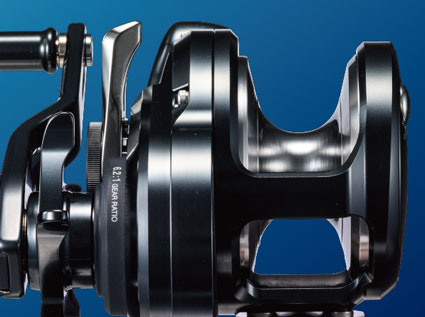

HAGANE BODY Metal armor smashed up by cold forging The HAGANE body of the Ossia Jigger F Custom is a metal armor that has been struck hard by cold forging. High rigidity protects the internal structure of the reel and minimizes deflection to improve gear engagement accuracy. Converts the power of the angler into hoisting power without letting it escape.	Cold forged S compact bod Compact design that can be firmly grasped The body on the palming side is designed to be more compact in diameter than the handle side. On top of that, the contact surface with the palm and fingers has been expanded to realize a hold feeling that can be firmly grasped. Since it fits firmly in the palm, it is easy to hold, improving operability and reducing angler fatigue.	Cold forged long crank handle Achieves high rigidity of up to about 200%. The handle is equipped with a highly rigid and strong cold forged long crank handle as standard equipment. The hard and sturdy handle body realizes up to about twice the rigidity of the conventional one, and the synergistic effect with the HAGANE body enables direct winding without power loss.

Specification table

Item name	Gear ratio	Handle 1 rotation (cm)	Weight (g)	Max drag (kg)	Line capacity PE Line(PE-m)	Bearing		Catalog Price	Price [JPY]	Product Code	Parts Scheme
Item name	Gear ratio	Handle 1 rotation (cm)	Weight (g)	Max drag (kg)	Line capacity PE Line(PE-m)	BB	roller	Catalog Price	Price [JPY]	Product Code	Parts Scheme
1000HG RIGHT	6.4	98	430	7.0	PE 2 - 300m PE 2.5 - 230m PE 3 - 200m	8/1		56,000	JPY49,280	04000
1001HG LEFT	6.4	98	430	7.0	PE 2 - 300m PE 2.5 - 230m PE 3 - 200m	8/1		56,000	JPY49,280	04001
1500HG RIGHT	6.4	98	430	7.0	PE 2 - 500m PE 2.5 - 400m PE 3 - 320m	8/1		56,000	JPY49,280	04002
1501HG LEFT	6.4	98	430	7.0	PE 2 - 500m PE 2.5 - 400m PE 3 - 320m	8/1		56,000	JPY49,280	04003
2000NRHG RIGHT	6.2	117	605	10.0	PE 3 - 400m PE 4 - 300m PE 5 - 220m	8/1		61,000	JPY53,680	04004
2001NRHG LEFT	6.2	117	605	10.0	PE 3 - 400m PE 4 - 300m PE 5 - 220m	8/1		61,000	JPY53,680	04005
3000HG RIGHT	6.2	117	630	10.0	PE 3 - 670m PE 4 - 480m PE 5 - 400m PE 6 - 330m	8/1		64,000	JPY56,320	04006
* HG = high gear specification. * 1: The grooves on the spool spool represent 1/3 and 2/3, respectively. * Ossia Jigger F Custom is exclusively for PE line of all models.
